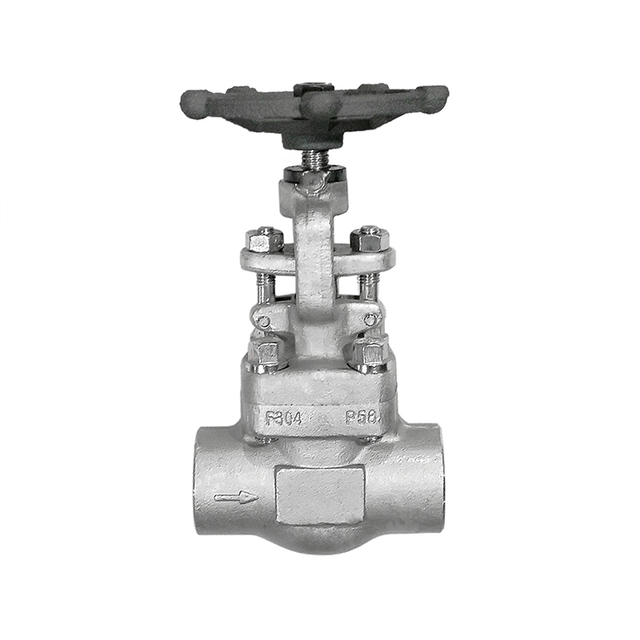

The Stainless steel forged oxygen globe valve is a mandatory sealing valve. When the medium enters from below the valve disc, the resistance that the operating force needs to overcome is the friction force of the valve stem and the packing and the thrust generated by the pressure of the medium. The force of closing the valve is greater than the force of opening the valve, so the force of the valve stem The diameter should be large, otherwise the valve stem will bend up failure.

Carbon steel temperature-pressure rate：CL150-285 P.S.I @ 100°F；CL300-740 P.S.I @ 100°F；CL 600-1480 PSI @ 100°F CL 800-1975 P.S.I @ 100°F；CL 1500-3705 PS.I @ 100°F

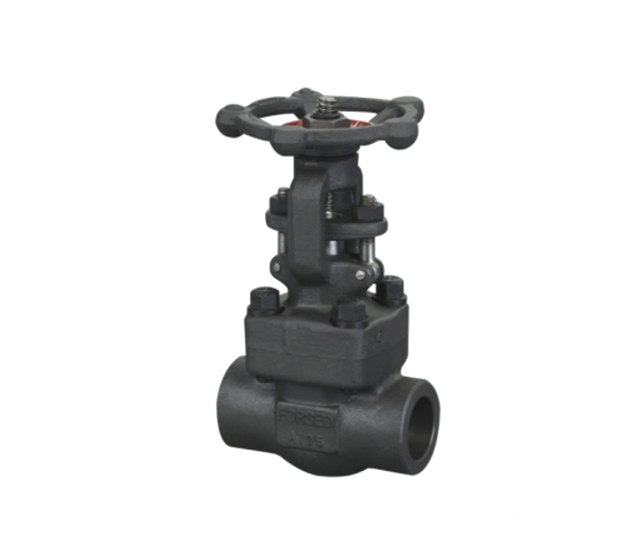

Female threaded and socket welded globe valves

Our Stainless steel socket welding globe valve can be used to throttle flow control. Shut off is accomplished by moving the disc against the flow stream rather than across it as in the case with a gate valve. The flow pattern through a globe valve involves changes in direction, resulting in greater resistance to flow, causing high-pressure drop. The globe valve is an excellent valve to use in high-pressure operation of steam. Our Stainless steel socket welding globe valves are factory-made with quality material for long-term use.

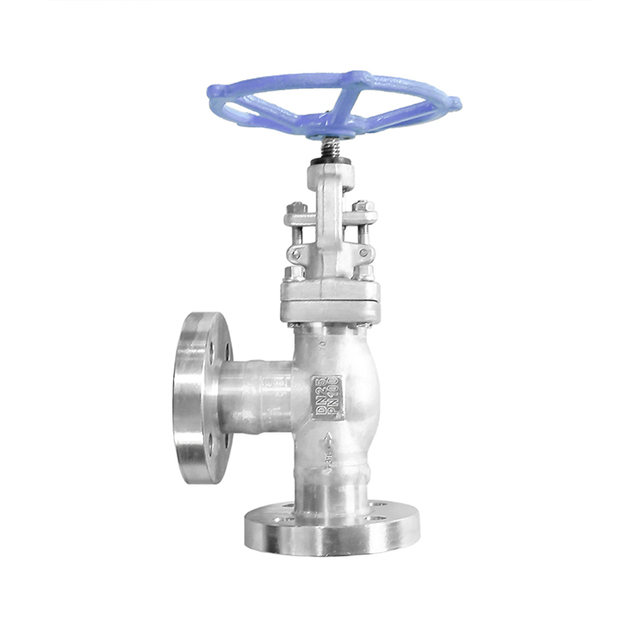

Stainless steel manual welding flange angle globe valves are a type of globe valves that are used in varying angles to the pipeline. Most valves are used in perpendicular to the pipe system. The globe valves have a valve body within which a plug is raised and lowered to close and open and opening inside the body structure. The Stainless steel manual welding flange angle globe valve was designed in a globe shape in the early times. Nowadays, there are different shapes of valves that are called the globe valves. The angle of the valve is decided as per the application need. The angles allow the applications to reduce the coefficient of the flow than in usual patterned valves. The Angle Globe Control Valve is used to regulate the flow of the liquid rather than completely stopping and allowing the fluid flow.
