Product Description

Our Stainless steel socket welding globe valve can be used to throttle flow control. Shut off is accomplished by moving the disc against the flow stream rather than across it as in the case with a gate valve. The flow pattern through a globe valve involves changes in direction, resulting in greater resistance to flow, causing high-pressure drop. The globe valve is an excellent valve to use in high-pressure operation of steam. Our Stainless steel socket welding globe valves are factory-made with quality material for long-term use.

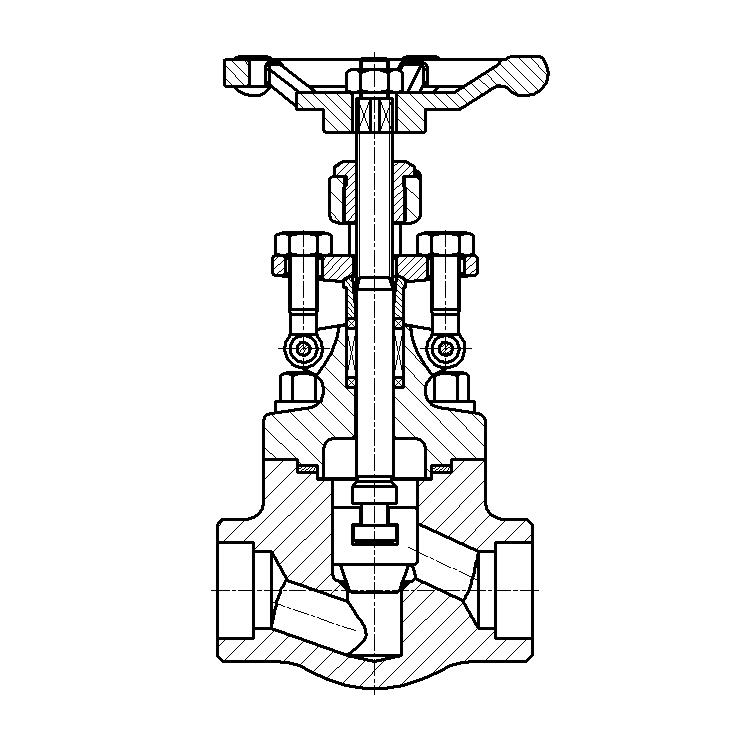

Product Structure Characteristics

1.Compact body with body and bonnet made of forged ASTM A105 carbon steel, sealed with a stainless steel 316 & graphite gasket

2.32mm OD socket weld ends conforming to ASME B16.11

3.Suitable for saturated steam, hot water, heat transfer fluids, air and more

4.Stainless steel valve plug hardened with stellite for a strong seal

5.No-leak gland using triple sealing: bellows, gland packing and stem seal at full-open position

6.Graphite gland packing which doesn't need to be tightened or replaced

7.Durable stainless steel bellows tested to withstand 10,000 cycles

8.Manual operation with carbon steel (ASTM A105) handwheel

9.Maximum operating pressure: 50 bar

10.Maximum operating temperature: 400°C

Advantages

We can ensure our Stainless steel socket welding globe valve has such advantages: our globe valve has satisfying shutoff capability and it is moderate to good throttling capability, besides, the shorter stroke is better, and it is available in tee and angle patterns, each offering unique capabilities. In addition, it can be Easily matched to machine or resurface the seats. Last but not least, with the disc not attached to the stem, a valve can be used as a stop-check valve.
